The increasing power demands of modern watercraft render legacy dock infrastructure obsolete, inefficient, and hazardous. Marina operators, harbor masters, and private dock owners face compounding challenges with aging facilities. Insufficient amperage, unmetered utility loss, tripping hazards from exposed cables, and non-compliance with updated marine electrical codes frequently disrupt municipal marina revitalization projects and daily harbor operations. Upgrading to purpose-built marina pontoons equipped with modern utility stations addresses these operational bottlenecks directly. This guide breaks down the technical requirements, structural integration, utility optimization, and return-on-investment factors necessary for evaluating and specifying reliable dockside utility solutions. You will learn how to transition from basic mooring setups to full-service berths that prioritize safety, streamline maintenance, and improve overall facility management.
Safety and Compliance First: Modern service pedestals require strict adherence to marine electrical standards, including UL listing (such as UL 231) and advanced ground fault protection, to mitigate electrocution hazards in wet environments.
Structural Synergy: Reliable utility access depends on the stability of the marina pontoons; excessive movement must be controlled by a robust anchor system to prevent shearing of internal plumbing and electrical conduits.
Revenue Recovery and Efficiency: Smart pedestals with remote metering capabilities allow marina operators to transition from flat-rate billing to precise usage tracking, significantly improving utility ROI and operational efficiency.
Multi-Purpose Functionality: Beyond simple shore power, high-performance pedestals act as complete utility hubs, facilitating daily boat maintenance, dock cleaning, high-speed data access, and safety lighting for diverse harbor users.
Material Resilience: Evaluating the corrosion resistance of pedestal housings (e.g., marine-grade aluminum, heavy-duty fiberglass, or UV-stabilized polycarbonate) is critical for minimizing long-term maintenance in harsh saltwater and freshwater environments.
A successful dock modernization project must resolve existing utility bottlenecks, enhance physical safety, and accommodate future vessel capacity demands. Defining the baseline success criteria early ensures that infrastructure upgrades deliver measurable improvements. Facilities relying on outdated power posts often experience frequent breaker trips, water leaks, and accelerated corrosion. Replacing these with a modern Service Pedestal transforms a basic tie-up into a highly functional utility hub capable of supporting complex onboard systems. We see this constantly in the field: a marina tries to limp along with 30-amp service from the 1990s, only to face melted receptacles and angry tenants when modern yachts plug in.
Boater expectations now mandate reliable shore power for HVAC systems, continuous battery charging, refrigeration, and everyday convenience. A simple wooden post with a standard outlet no longer meets the requirements of modern recreational or commercial vessels. Full-service berths provide dedicated, high-amperage connections that allow vessel owners to run onboard electronics seamlessly while docked. This transition requires careful load calculation to ensure the main electrical feed can support multiple vessels drawing peak power simultaneously. You have to account for voltage drop over long dock runs, sizing your feeder cables appropriately to maintain a steady 120V or 240V at the furthest slip.
When upgrading, you must evaluate the specific demographic of your harbor. A facility catering to 25-foot center consoles has vastly different power requirements than one hosting 80-foot motor yachts. The latter demands 100-amp, three-phase power, heavy-duty isolation transformers, and specialized cam-lock connections. Failing to provide adequate power not only frustrates boaters but also forces their onboard generators to run constantly, creating noise and exhaust pollution in the marina basin.
Integrated utility stations facilitate routine boat maintenance, deck washing, and light commercial operations. Having pressurized water and reliable electricity immediately accessible at the slip eliminates the need for long, hazardous extension cords or hoses stretching across walkways. Harbor users can efficiently perform tasks like high-pressure washing, power tool operation for minor repairs, and interior cleaning. This localized access significantly enhances the overall customer experience and keeps the dock environment organized and safe.
Consider the daily workflow of a boat owner or a detailing crew. They need to plug in polishers, wet vacs, and air compressors. If they have to daisy-chain extension cords across three slips to find a working 20-amp GFCI outlet, you have a severe tripping hazard and a fire risk. A dedicated utility hub at every slip or shared between two slips solves this immediately. It keeps the main walkways clear for dock carts and pedestrians.
Establishing clear metrics for a successful installation is essential. Primary goals should include zero safety incidents related to electrical faults, 100% utility uptime during the peak boating season, and a minimized physical footprint on the dock surface. Accurate cost-recovery for water and electricity usage also stands as a critical metric. When these criteria are met, the facility operates smoothly, liability risks decrease, and user satisfaction improves.
Achieve full compliance with NEC Article 555 for marina electrical installations.
Eliminate all tripping hazards by routing cables through integrated dock trenches.
Implement sub-metering to capture 100% of shore power usage.
Reduce maintenance call-outs for tripped breakers by 80% through proper load balancing.
Ensure all water connections feature ASSE-approved backflow prevention.

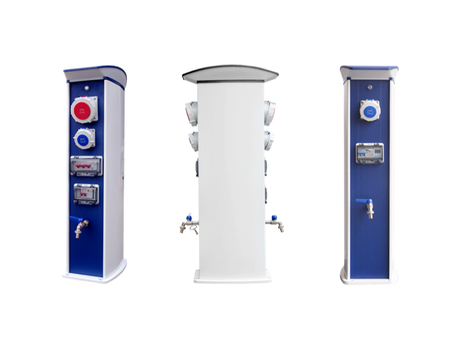

Delivering power and water to floating structures requires specialized equipment designed specifically for marine environments. Standard residential or industrial fixtures fail rapidly when exposed to constant moisture, salt spray, and UV radiation. Specifying the correct internal components ensures long-term reliability and code compliance. You cannot cut corners here; using non-marine-rated parts leads to rapid corrosion, electrical shorts, and severe safety hazards.
Modern power stations must offer various amperage configurations to support different vessel sizes. Standard setups include 20A, 30A, and 50A receptacles, while superyacht berths may require 100A or three-phase power connections. Ground Fault Circuit Interrupters (GFCI) and Equipment Leakage Circuit Interrupters (ELCI) are absolutely critical. These devices detect minute electrical leaks into the water, cutting power instantly to prevent electric shock drowning (ESD). All electrical components must meet National Electrical Code (NEC) standards and carry appropriate UL listings for marine use.
The implementation of 30mA ELCI protection at the pedestal or the main distribution panel is now a strict requirement in most jurisdictions. This level of protection is sensitive enough to save lives but robust enough to avoid nuisance tripping from minor, normal leakage currents inherent in some older boat electrical systems. Upgrading to these standards often requires a complete audit of the marina's grounding system to ensure fault currents have a clear, low-resistance path back to the source.
Plumbing integration requires freeze-resistant valves, high-quality backflow prevention devices, and durable hose bibs. Backflow preventers stop contaminated dock water from siphoning back into the municipal water supply. Operationally, water lines must be strictly separated from electrical components within the housing. Physical barriers inside the unit prevent internal condensation or minor plumbing leaks from causing catastrophic short circuits or accelerated corrosion of electrical terminals.
In colder climates, winterization is a major concern. Utility hubs must feature accessible drain valves or blowout ports to clear lines before the first hard freeze. We recommend using cross-linked polyethylene (PEX) tubing inside the dock structure and the pedestal itself, as it offers slight expansion capabilities that resist bursting better than rigid PVC or copper. Quarter-turn stainless steel ball valves provide reliable operation and resist the seizing common with cheaper brass gate valves.
Localized LED lighting serves multiple functions on a busy dock. Downward-directed illumination aids harbor navigation, highlights walkway edges for nighttime safety, and improves overall dock aesthetics without causing light pollution or blinding boaters. Photocell-controlled lighting ensures fixtures only operate when necessary, conserving energy. Clear safety signage, including slip numbers and emergency shut-off instructions, should be integrated directly into the housing design.
Lighting color temperature matters. We typically specify 3000K to 4000K LEDs. This range provides clear visibility without the harsh, sterile glare of 5000K+ fixtures. Amber or red LED options are also available for facilities near sea turtle nesting grounds or those wanting to preserve boater night vision. The lenses covering these LEDs must be made of UV-stabilized polycarbonate to prevent yellowing and cracking over time.
Long-term and transient slip holders increasingly demand connectivity alongside basic utilities. Integrating high-speed Wi-Fi transceivers, cable television ports, and hardwired internet connections directly into the housing centralizes all necessary services. This integration prevents the need for secondary mounting poles and keeps data cables neatly routed alongside primary electrical conduits.
Running fiber optic lines directly to the slip is becoming the gold standard for premium marinas. By terminating a fiber connection inside the utility hub, you can offer gigabit internet speeds to individual vessels. This requires careful planning during the dock construction phase to ensure conduit sweeps are wide enough to accommodate the bend radius of fiber cables without damaging the glass core.
Mounting utility stations to floating structures involves distinct engineering challenges. The connection points must withstand constant vibration, physical impacts, and the natural movement of the water. Proper structural integration prevents premature wear and ensures utilities remain securely attached during severe weather events. You have to bolt these units down through the decking and directly into the structural frame of the dock.
Facility managers must evaluate spatial trade-offs when selecting mounting locations. Deck mounting places the unit directly on the walkway surface, offering easy access for maintenance and meter reading. However, this consumes valuable pedestrian space and can create obstacles for dock carts. Edge mounting attaches the unit to the external frame of the pontoon, preserving deck space. This method requires specialized structural brackets and can complicate maintenance access, as technicians must reach over the water to service the components.
When deck mounting, we use heavy-duty stainless steel backing plates under the decking material. Lag screws driven only into wood or composite boards will eventually pull out due to the leverage exerted on the tall pedestal housing. Through-bolting with nylon-insert lock nuts ensures the unit remains rigid even if a boater accidentally leans heavily against it or strikes it with a loaded cart.
Routing utilities safely through floating structures requires meticulous planning. Flexible marine-rated conduits and internal utility trenches protect wiring and plumbing from physical damage and UV exposure. These routing systems must accommodate tidal fluctuations and wave action without stressing connections at hinge points. Transition plates and specialized flexible joints allow the conduits to bend naturally as the dock rises and falls, preventing cable fatigue and pipe ruptures.
The transition from the fixed pier to the floating dock is the most critical failure point for utilities. We utilize extra-flexible, liquid-tight conduit and reinforced rubber water hoses with stainless steel braided jackets for this span. You must calculate the maximum tidal range and add a safety factor to determine the exact length of these flexible jumpers. Too short, and they rip out during a king tide; too long, and they chafe against the dock hardware.
Utility integrity relies heavily on the overall stability of the floating structure. A properly engineered Anchor System directly impacts the lifespan of plumbing and electrical connections. Poorly designed anchoring allows excessive lateral movement, twisting, or jarring. This violent motion can rupture water lines and sever electrical connections at critical transition points between the shore and the floating dock.
If a dock shifts three feet laterally during a storm because the anchoring is loose, the utility conduits will stretch beyond their breaking point. Rigid PVC pipes will snap, and electrical wires will pull out of their terminal blocks, creating an immediate electrocution hazard. Upgrading your utility hubs without first ensuring your anchoring mechanism is rock-solid is a waste of capital. The two systems must be engineered to work together.
The physical housing of dockside utilities dictates their lifespan and maintenance requirements. Selecting the appropriate material based on the specific environmental conditions of the facility prevents premature degradation and frequent replacement. You need materials that can take a beating from the sun, salt, and physical impacts.
Different materials offer varying levels of protection against the elements. Marine-grade 316 stainless steel provides excellent durability but requires regular polishing to prevent tea-staining in saltwater. Heavy-duty fiberglass offers superior corrosion resistance and electrical insulation, making it a popular choice for coastal facilities. UV-stabilized engineered plastics and polycarbonates provide lightweight, impact-resistant options suitable for freshwater and protected harbors. Anodized aluminum balances strength and weight, offering good resistance to oxidation when properly coated.
Material Type | Best Application | Primary Advantages | Maintenance Needs |
|---|---|---|---|
316 Stainless Steel | High-end coastal marinas | Extreme structural strength | Regular polishing required |
Heavy-Duty Fiberglass | Saltwater and harsh climates | Zero corrosion, excellent insulation | Minimal, occasional cleaning |
Polycarbonate/Plastic | Freshwater lakes and rivers | Lightweight, impact-resistant | Inspect for UV fading over time |
Anodized Aluminum | General marine use | Good strength-to-weight ratio | Monitor coating integrity |
Fiberglass remains the workhorse for saltwater environments. It does not rust, it does not conduct electricity, and it withstands hurricane-force winds when properly molded. However, the gel coat finish can chalk over time if not maintained. A simple annual application of marine wax keeps fiberglass housings looking brand new for decades.
Prolonged sun exposure degrades inferior plastics, causing them to become brittle and crack. Physical impacts from heavy dock carts, dropped tools, or minor vessel collisions are inevitable. NEMA-rated enclosures (such as NEMA 3R or 4X) guarantee that the housing maintains its structural integrity and waterproofing over a 10-to-15-year lifecycle. Investing in high-impact, UV-resistant materials significantly reduces the frequency of housing replacements and protects the sensitive internal components.
When inspecting older docks, we frequently see cracked plastic housings where water freely enters the electrical compartment. This usually happens because the manufacturer used standard ABS plastic instead of UV-stabilized polycarbonate. Always verify the UV rating of the materials specified in your project. A slightly higher upfront cost for premium materials pays off by preventing catastrophic electrical failures five years down the road.
Upgrading dock utilities requires significant capital investment. Evaluating the long-term value generated by these upgrades ensures that the facility maximizes its return through improved efficiency, reduced maintenance, and enhanced revenue capture. You have to look past the initial purchase order and understand how these systems affect your daily operating budget.
Initial equipment costs represent only a fraction of the overall financial picture. Cheaper, non-serviceable units often require complete replacement when a single component fails. Modular designs allow maintenance staff to replace individual breakers, receptacles, or lighting lenses quickly and cost-effectively. This modularity extends the functional lifespan of the equipment and drastically reduces ongoing maintenance expenses, providing far greater long-term value despite a potentially higher initial purchase price.
We advise clients to stock spare parts for their specific utility hubs. Having a few extra 30-amp receptacles, replacement LED boards, and spare breakers on hand means your maintenance team can fix a broken unit in fifteen minutes. If you buy sealed, non-modular units, a broken outlet means shutting down power to the slip, ordering a whole new unit, and waiting weeks for delivery while the boater demands a refund.
Remote metering technology fundamentally changes how facilities manage utility consumption. Integrating smart meters with marina management software eliminates the labor-intensive process of manual meter reading. This automation prevents utility theft, ensures accurate billing for both transient and long-term slip holders, and stops revenue leakage. Facilities transition from estimating utility costs to precise cost-recovery, rapidly offsetting the initial investment in smart technology.
Manual meter reading is prone to human error and takes days to complete in a large harbor. Smart meters transmit kilowatt-hour and water gallon usage directly to the front office via a mesh network or hardwired data lines. You can instantly generate invoices, detect abnormal water flow indicating a leak, and even remotely turn off power to a slip if a tenant fails to pay their bill. The labor savings alone justify the upgrade.
Providing high-tier utility stations on stable floating structures justifies higher slip rental fees. Premium vessel owners require reliable, safe, and convenient access to power and water. Upgraded facilities attract larger vessels and longer-term tenants, increasing overall occupancy rates and maximizing the revenue generated per slip.
A dock with clean, modern utility hubs, bright LED lighting, and fast Wi-Fi commands a premium price in the market. Boaters talk to each other. If your facility is known for clean power that doesn't damage sensitive onboard electronics, you will have a waiting list. Conversely, if your power is dirty and your breakers trip constantly, word spreads quickly, and occupancy drops.
Executing a large-scale utility upgrade involves logistical and regulatory hurdles. Identifying these risks early allows project managers to implement effective mitigation strategies and keep the modernization effort on schedule. Construction on the water is inherently unpredictable; you must plan for delays and have contingency plans ready.
Failed electrical inspections or insurance claim denials due to non-compliant installations pose severe financial risks. Electrical codes for wet environments update frequently, and adherence is non-negotiable. To mitigate this risk, mandate that all specified equipment is explicitly UL Listed for marine environments. Furthermore, only utilize certified marine electricians who possess specific experience with dockside power distribution and ground fault protection systems.
Do not hire a standard residential electrician to wire a marina. The grounding requirements, voltage drop calculations, and environmental sealing techniques are entirely different. A marine electrician understands how to properly apply dielectric grease, use marine-grade heat shrink tubing, and route cables to prevent chafing against the dock frame. Getting the installation right the first time prevents costly rework after the municipal inspector fails the project.
Upgrading utilities without disrupting active boating seasons presents a significant logistical challenge. Closing large sections of the harbor results in lost revenue and frustrated tenants. Plan phased rollouts to minimize disruption. Utilize modular dock designs that allow for pre-wired utility trenches, enabling faster installation on-site. Whenever possible, schedule heavy infrastructure work, trenching, and main panel upgrades during off-season months.
We typically execute these upgrades one dock finger at a time. We pre-assemble the utility hubs and cut the conduit to length in a staging area on land. When we move to the dock, the old units are removed, and the new ones are bolted down and wired in a matter of hours. This assembly-line approach keeps the majority of the marina open and operational while the upgrades progress steadily.
Conduct a comprehensive site audit with a marine engineer to assess current electrical capacity and structural health.
Calculate precise utility loads based on current and projected vessel sizes before requesting vendor quotes.
Select modular utility hubs built with UL-listed, marine-grade materials to ensure long-term serviceability.
Verify that the chosen units integrate seamlessly with your existing structural layout and anchoring mechanisms.
Schedule the installation in phases during the off-season to minimize disruption to active boaters.
A: It is a centralized, weather-resistant utility hub mounted directly on a dock. It provides vessels with safe, reliable access to shore power, potable water, localized lighting, and often data connections like internet or cable television.
A: It provides immediate, safe access to electricity for power tools, vacuums, and high-pressure washers. It also supplies pressurized water for boat washing and routine cleaning tasks directly at the slip, eliminating the need for long hoses and extension cords.
A: Standard configurations offer 20A, 30A, and 50A connections for typical recreational vessels. For superyachts and large commercial vessels, units can scale up to provide 100A or three-phase power, depending on the facility's main electrical infrastructure.
A: They are weather-resistant, not fully waterproof. Designed to NEMA 3R or 4X standards, they withstand heavy rain, splashing, salt spray, and UV exposure. However, they are not designed to remain functional if completely submerged underwater.
A: Cables are routed using flexible, marine-rated conduits placed within internal utility trenches beneath the decking. These routing systems are specifically designed to flex and move safely with tidal fluctuations and wave action.
A: A secure anchor system minimizes violent movement and lateral shifting of the floating dock. This stability prevents the physical shearing, stretching, or disconnection of the rigid and semi-rigid utility lines feeding the power stations.
A: Yes, retrofitting is entirely possible. However, the existing structure must be capable of supporting the new mounting hardware and must have adequate, safe routing space to accommodate updated electrical wiring and data cables.
