Selecting the right amperage for a Service Pedestal involves more than technical compliance. It stands as a highly critical capital allocation choice for modern facilities. Over-sizing leads directly to wasted infrastructure spending. You end up paying for unnecessarily heavy copper wire and oversized transformers. Conversely, under-sizing drives away lucrative larger vessels. Inadequate power outputs frequently cause nuisance breaker tripping.
Modern vessels demand massive continuous power. They run multiple HVAC units. They use active gyrostabilizers. Many now carry electric vehicle tenders. Relying solely on historical slip data fails miserably for new builds or dock retrofits. Past usage cannot predict future energy density.
Our goal is to provide operators and electrical contractors a definitive framework. You will learn how to match slip lengths and vessel profiles to the exact power output required. You can upgrade effectively without over-engineering the grid.
16A and 32A cover 80% of standard recreational berths (up to 15 meters), but 32A is rapidly becoming the baseline for modern, amenity-heavy boats.
63A and 125A are high-yield investments for superyacht and commercial transient slips, requiring stringent load calculations and phase-balancing.
Infrastructure dictates reality: Upgrading a marina electrical pedestal to a higher amperage often requires evaluating the entire upstream supply, including voltage drop over long pontoons and localized transformer limits.
Smart metering alters the ROI: High-amperage pedestals yield better returns when paired with smart billing to recover exact consumption costs rather than flat daily rates.

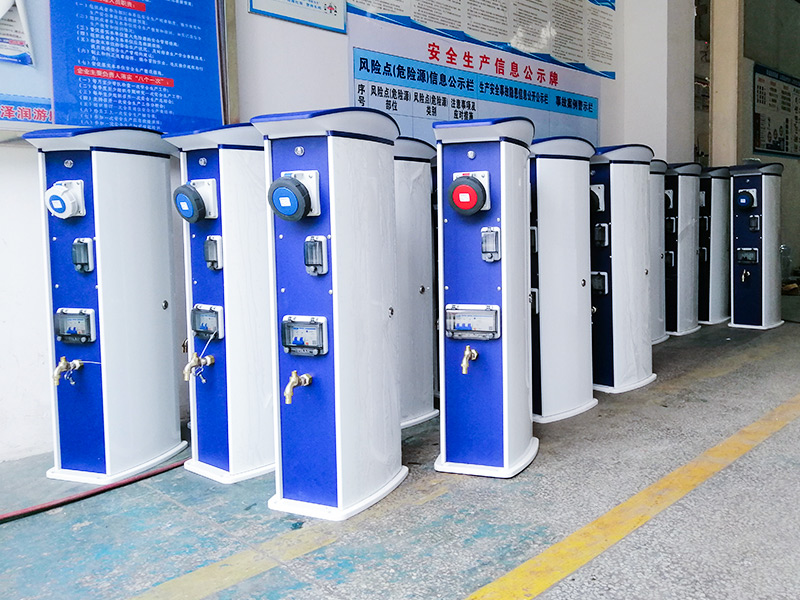

Choosing the correct dock power pedestal heavily impacts your initial capital expenditure. Amperage requirements dictate wire gauges. High-capacity switchgear demands a premium upfront investment. However, long-term slip revenue depends entirely on accommodating modern boaters. You must balance copper wiring costs against future yield.
Mistakes in power design carry severe consequences. Under-sizing creates immediate tenant frustration. Breakers blow repeatedly during peak summer weekends. Your facility loses the ability to accommodate premium transient traffic. Reputational damage spreads quickly through boating communities. Word travels fast when docks lack reliable power.
Over-sizing carries its own penalties. You face exponential increases in cabling expenses. Facilities end up holding stranded electrical capacity. You never actually utilize the massive transformers you bought. This creates completely unnecessary regulatory and compliance burdens.
You do not need absolute 100% capacity for every single marina utility pedestal simultaneously. Industry-standard diversity factors dictate how we calculate central grid connections. Fifty connected boats rarely draw peak power at the exact same moment. Understanding load diversity allows you to install higher-rated sockets without necessarily doubling your main substation size. It offers a smart pathway to flexible infrastructure.
Differentiating between amperage classes requires understanding specific vessel profiles. Each tier serves a distinct demographic. You must align your hardware choices with expected boat sizes.
The 16-amp option targets sub-10 meter vessels. These include day cruisers and small sailboats. Typical loads remain minimal. They rely on basic battery charging. They use small refrigeration units and LED lighting. Cost-wise, this remains highly effective for standard slips. However, it proves increasingly insufficient for any boat running onboard air conditioning.
The 32-amp tier targets 10 to 18-meter vessels. Think of mid-sized motor yachts and modern catamarans. Typical loads look drastically different here. They run multiple AC units. They operate large water heaters and induction cooktops. This serves as the safest default choice for modern marina upgrades. It offers the absolute best balance between infrastructure cost and boater satisfaction.
The 63-amp level targets 18 to 24-meter vessels. These luxury yachts and light commercial boats demand heavy continuous loads. They use active gyrostabilizers. They operate multiple high-draw appliances simultaneously. These units are strictly necessary for premium transient docks. They also require incredibly careful phase balancing at your main distribution board.
The 125-amp option strictly targets 24+ meter superyachts. Typical loads include full ship-to-shore power integration. They demand commercial-grade galleys and heavy HVAC systems. Infrastructure costs jump significantly here. You should strategically limit these to designated superyacht berths. T-heads near direct transformer access make the best locations.
Table 1: Marina Pedestal Amperage Comparison
Amperage |
Vessel Length |
Primary Use Case |
Infrastructure Impact |
|---|---|---|---|
16A |
Under 10m |
Battery charging, lighting |
Low cost, standard wiring |
32A |
10m - 18m |
HVAC, water heaters |
Medium cost, new standard |
63A |
18m - 24m |
Gyrostabilizers, luxury amenities |
High cost, requires phase balancing |
125A |
24m+ |
Full ship-to-shore power |
Premium cost, transformer proximity needed |
You cannot upgrade a dock by simply swapping sockets. Upgrading a marina electrical pedestal demands serious infrastructure evaluation.
Routing power across long distances presents a physical reality. Pushing electricity 200 meters from the shoreline introduces significant voltage drop. Thicker copper wire prevents this voltage loss. Upgrading from 16A to 32A frequently requires entirely new conduit. Pulling thicker cables through old, narrow pipes rarely works. You must account for trenching and pontoon raceway modifications.
You must adhere strictly to local electrical codes. IEC 60364-7-709 governs European docks. NEC Article 555 dictates North American safety standards. Proper Residual Current Device (RCD/RCBO) protection proves critical. You must install these at the pedestal level. They actively prevent electric shock drowning (ESD). Sensitivity standards grow stricter every year. Ignoring them invites immense liability.
Heat destroys electrical components. Managing heat in densely packed pedestals remains a massive challenge. Drawing continuous high loads like 63A or 125A creates internal stress. Direct sunlight exacerbates the problem. Enclosures bake under UV rays. You must select enclosures designed for thermal dissipation. Adequate spacing between breakers prevents nuisance tripping caused by ambient heat rather than electrical faults.
Local municipal grids possess strict capacity limits. You must assess this before buying hardware. Can your utility lines actually support a marina-wide upgrade? Jumping to 32A across all slips draws massive theoretical power. You might trigger a mandatory, costly substation upgrade. Always communicate early with utility providers.
The boating industry sits on the edge of massive electrification. You must prepare your docks for different energy consumption patterns.
Electric boats change the continuous draw profile completely. Electric tenders replace traditional outboards. Every marina power pedestal will eventually face EV charging demands. They act exactly like highway charging stations. This completely alters the daily load curve of your facility.
Understanding load types prevents catastrophic failures. A traditional boat creates short-term peak draws. Starting an AC compressor pulls heavy amps for three seconds. Conversely, an electric vessel creates a continuous maximum draw. It will charge at full capacity for eight straight hours. Continuous loads stress cables differently. They generate relentless heat. Wires sized only for peak bursts will melt under continuous EV loads.
Smart energy management saves infrastructure costs. You can use dynamic load-sharing networks. Smart pedestals communicate constantly across the dock. They actively allocate power where needed. This allows a marina to install 63A pedestals on a grid mathematically designed for 32A per slip. If total dock capacity nears its limit, software gently throttles EV charging rates. Boaters still get their power safely. You avoid buying a million-dollar transformer.
Operators need a systemic approach to upgrades. Avoid guessing. Follow these four actionable steps to define your exact needs.
Conduct a Slip Audit: Walk your docks and map existing slip lengths. Analyze your target demographic. Differentiate between local seasonal renters and transient premium guests. Seasonal renters use less power. Transient guests demand luxury amenities.
Evaluate Upstream Capacity: Hire a licensed marine electrical engineer. Have them determine the maximum available KVA at your main switchboard. You must know your absolute power ceiling before planning socket layouts.
Define the Pedestal Ratios: Create a targeted distribution mix. A highly successful example mix looks like this: 20% 16A for small slips. 60% 32A for standard and premium slips. 15% 63A for T-heads and large slips. 5% 125A reserved exclusively for superyacht berths.
Select Hardware Features: Decide between different metering technologies. You can use RFID cards, remote switching, or pre-pay systems. Smart billing ensures a solid ROI. It lets you recover exact consumption costs accurately.
Sizing a pedestal requires careful business strategy. It remains an exercise in balancing immediate capital expenditure with future revenue potential. The 32A option firmly stands as the modern baseline. Meanwhile, 63A and 125A installations dictate your ability to attract highly lucrative, top-tier vessels.
Actionable next steps include recommending a site-specific load calculation immediately. You should schedule a consultation with a marine electrical specialist. Never procure hardware before confirming your upstream grid capacity. Smart planning prevents stranded capital and ensures your docks remain competitive for decades.
A: Yes, they can connect safely if they use an approved, marine-grade adapter. The pedestal-level breaker protection plays a vital role here. The 32A pedestal breaker protects the dock's wiring. However, the adapter itself must contain an inline 16A breaker to protect the boat's smaller power cord from melting during an overcurrent event.
A: While single-phase 63A equipment does exist, three-phase power stands as the true industry standard. Three-phase power keeps your cable sizes physically manageable. It also balances the massive grid load evenly across phases. Running single-phase 63A creates severe voltage drops and unbalances the local utility transformer.
A: Breakers trip for two distinct reasons: overcurrent and earth leakage. Modern marine environments require highly sensitive RCDs or GFCIs. These devices detect tiny ground faults, not just amp overloads. If a boat has faulty onboard wiring or neutral-to-ground bonding issues, the pedestal senses earth leakage and trips instantly to prevent electric shock.
A: The physical pedestal swap looks incredibly easy and affordable. However, the upstream cabling often dictates the true cost. If your existing underground wires and main dock breakers cannot handle doubled amperage, you face massive trenching and rewiring costs. The hidden infrastructure acts as the limiting factor.
