A baseline floating platform provides necessary buoyancy and a functional footprint on the water. However, the operational safety, structural longevity, and overall user experience of any marina are dictated entirely by its integrated accessories. Marina operators and commercial dock owners face a distinct challenge. They must select hardware that meets stringent safety regulations and withstands harsh marine environments. They also need to accommodate varying vessel sizes without over-capitalizing on unnecessary upgrades.
This guide provides a technical evaluation framework for shortlisting and implementing commercial-grade dock accessories. We cover everything from mooring hardware and utility distribution to modular connectors. You will learn how to ensure long-term functionality, protect your marine assets, and mitigate liability risks effectively.
Prioritize Load-Rated Mooring and Secure Anchoring: Selecting the correct cleats, pile guides, and modular structural connectors prevents catastrophic failure during high-wind or tidal events.
Centralize Utilities Safely: Integrating a marine-grade Service Pedestal is critical for delivering compliant, weather-resistant power and water to berthed vessels.
Material Selection Drives TCO: Upgrading to high-friction, UV-stabilized composite Decking reduces maintenance overhead and mitigates slip-and-fall liabilities.
Plan for Emergency Egress and Accessibility: Access accessories like safety ladders, reinforced handrails, and low-profile transitions are non-negotiable for regulatory compliance and risk management.
Incorporate Advanced Dry-Docking: Integrating floating boat lifts onto the floating pontoon structure protects hulls, prevents marine fouling, and eases routine maintenance.
Selecting the right accessories requires a clear understanding of your specific marine environment. You must establish baseline requirements before purchasing hardware. Consider maximum vessel displacement limits, local tidal ranges, and expected daily user traffic. High-traffic commercial marinas require vastly different hardware tolerances compared to private residential docks. A thorough site assessment prevents under-engineering your mooring points or over-specifying utility pedestals.
Calculate the maximum displacement and windage area of the largest vessel permitted in each slip.
Measure the extreme high and low water marks during spring tides to determine pile guide height requirements.
Assess the fetch of the marina basin to estimate maximum wave heights during storm conditions.
Determine the required live load capacity for pedestrian traffic, especially on main headwalks.
Your platform must adjust dynamically to varying water levels. Tides, seasonal floods, and reservoir drawdowns constantly change the water line. The accessory configuration must align with specific boat heights and freeboards. It should also match various pontoon hull shapes to minimize operational impact. If the dock sits too high, boarding becomes dangerous. If it sits too low, vessel rub rails will override the dock edge, causing severe fiberglass damage.
Measure the average freeboard of the vessels frequenting your marina.
Select edge protection and fenders that match these height profiles.
Ensure gangways and transition plates maintain safe slopes during low tide.
Utilize adjustable hinge brackets to fine-tune the articulation between dock sections.
Evaluate all accessories through the lens of local maritime regulations. Compliance with ADA accessibility standards is mandatory for public facilities. Insurance providers often dictate specific safety hardware requirements. Failing to install approved fire suppression equipment or emergency egress ladders can void liability coverage. You must verify that all electrical components meet the National Electrical Code (NEC) Article 555 for marinas and boatyards.
Analyze the trade-offs between cheaper, consumer-grade hardware and commercial-grade marine alloys. Consumer-grade plastics degrade rapidly under intense UV exposure. Marine-grade stainless steel and heavy-duty composites require a higher initial investment. However, they offer extended lifecycles and drastically reduce ongoing maintenance demands. Factor in the labor costs associated with replacing failed hardware every three years versus installing a 15-year commercial solution from day one.
The structural integrity of a floating pontoon relies on robust connections and reliable mooring points. Hardware failure during a storm can result in severe vessel damage and dock destruction. You must engineer these connection points to handle dynamic shock loads, not just static weight.
Multi-section modular assemblies require heavy-duty hinge kits and male-female dual connectors. Silent shock-absorber couplings reduce noise and minimize stress fractures. High-strength structural fasteners maintain the integrity of the entire assembly under heavy wave action. Inspect these connections regularly for signs of metal fatigue or loose threading. Use 316 stainless steel bolts with nylon-insert lock nuts to prevent vibration-induced loosening.
Load capacities must exceed the maximum vessel tonnage expected at the slip. A 10-inch cleat might hold a small runabout, but heavy cruisers demand reinforced bollards. The mounting method is just as important as the hardware itself.
Vessel Length | Recommended Cleat Size | Fastener Requirement | Backing Plate Size |
|---|---|---|---|
Up to 20 feet | 8-inch | 3/8" Through-bolts | Standard washer |
21 to 35 feet | 10-inch | 1/2" Through-bolts | 4" x 4" Aluminum plate |
36 to 50 feet | 12-inch to 15-inch | 5/8" Through-bolts | 6" x 6" Steel plate |
Over 50 feet | Heavy-duty Bollard | 3/4" Through-bolts | Custom structural channel |
Through-bolting provides maximum structural integrity by clamping the hardware directly through the deck and frame. Track-mounted systems offer placement flexibility but may have lower sheer strength ratings. Always use heavy-duty backing plates to distribute the load across a wider surface area.
Protecting the dock edge prevents hull scratches and structural gouging. The choice of material directly impacts impact absorption and longevity. Profile selection matters. D-shape profiles offer a wide contact area. P-shape profiles hook over the dock edge, protecting the top corner from overhanging bows.
Material Type | Durability & UV Resistance | Impact Absorption | Best Application |
|---|---|---|---|
Extruded PVC | Moderate (can become brittle over time) | Good for light to medium vessels | Residential docks, calm waters |
Closed-Cell Foam | High (will not deflate or absorb water) | Excellent for heavy impacts | Commercial marinas, high-traffic fuel docks |
Extruded Rubber | Very High (resists UV and harsh weather) | Superior energy dissipation | Industrial ports, large yacht berths |
Pile guides maintain structural stability during extreme tidal variations. They keep the dock locked in position while allowing vertical movement. Internal wear rollers reduce friction against the pilings. Self-adjusting slide guides accommodate slight piling misalignments. Heavy-duty anchoring brackets prevent dock drift and reduce structural fatigue on the main frame. Ensure the pile guide hoops are sized correctly; a tight fit causes binding during low tides, while a loose fit allows excessive lateral slamming.
Maintaining a safe distance between the vessel hull and the dock is necessary for preventing gelcoat damage. Flexible standoff configurations, like fiberglass mooring arms, keep boats securely positioned. Systems like tension-based Frog Hooks maintain distances ranging from 20 to 84 inches. This protects outboard engines and stern-drive systems during tidal swells. Always assess tension limits and hardware compatibility with your existing frames.
Low-profile, modular floating lifts integrate directly onto the platform. These systems lift the vessel entirely out of the water. This reduces hull wear and prevents marine growth. Drive-on, drive-off vessel docking streamlines the user experience and eliminates the need for complex hoisting cables. Ensure the dock's primary buoyancy can support the localized weight of the lift mechanism and the dry-docked vessel.
Modern vessels require reliable access to shore power and fresh water. Centralizing these utilities safely is a primary concern for marina operators. Poorly installed utilities present severe electrocution hazards and constant maintenance headaches.
Evaluate amperage requirements based on your target vessel demographic. Small boats may only need 15A or 30A connections. Large yachts require 50A or even 100A three-phase power. You must isolate water lines from electrical components. This separation meets National Electrical Code (NEC) marine standards and prevents catastrophic short circuits. Run water lines in separate conduits below the deck level, ensuring they are properly insulated against freezing in colder climates.

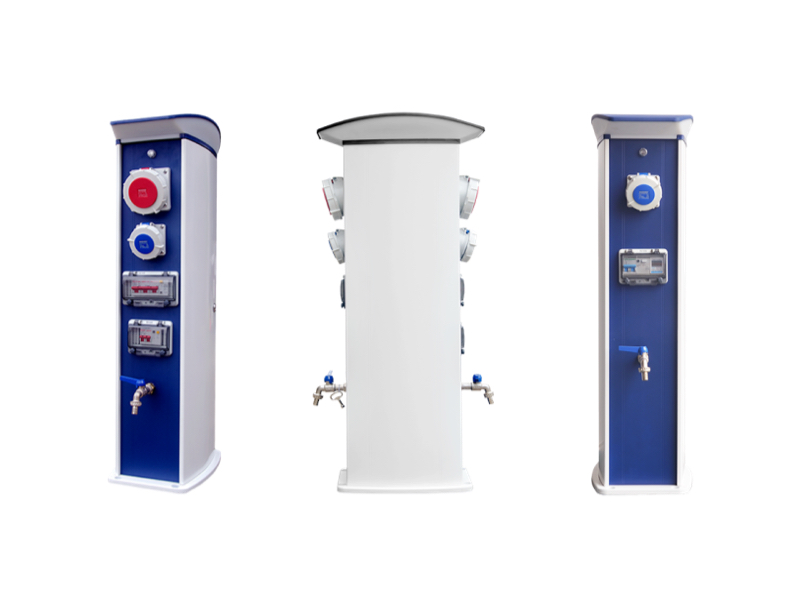

Marine environments are highly corrosive. A dedicated Service Pedestal must feature a minimum IP66 or IP67 rating. NEMA enclosures protect internal breakers from salt-spray and heavy rain. Integration of Ground Fault Circuit Interrupters (GFCI) is mandatory. Equipment Leakage Circuit Interrupters (ELCI) detect stray currents, preventing in-water electrocution hazards. Test these breakers monthly to ensure the internal trip mechanisms have not seized from salt air exposure.
Select modular units that allow for future upgrades. You may eventually want to add digital smart metering systems to track individual slip usage. High-speed internet connectivity and LED lighting upgrades are increasingly expected by modern boaters. Modular pedestals allow you to swap internal components without replacing the entire outer housing. Run oversized conduit during the initial build to accommodate future fiber optic or heavy-gauge copper pulls.
The walking surface of your dock is the most heavily utilized component. It must provide secure footing in wet conditions while resisting environmental degradation. Access hardware ensures users can navigate the marina safely, regardless of their physical ability.
Traditional treated timber warps, splinters, and requires constant sealing. Marine-grade aluminum is highly durable but can become uncomfortably hot in direct sunlight. Modern composite Decking offers an optimal balance. It provides excellent slip resistance and a high coefficient of friction. Composite materials resist rot, marine borers, and severe UV degradation. When installing composite boards, use hidden fastening systems to eliminate trip hazards and prevent water intrusion at the screw holes.
Safety ladders are critical for emergency water extractions. Flip-up ladders are vastly superior to fixed ladders. They stay out of the water when not in use, preventing barnacle build-up and marine growth. Ensure all ladders are constructed from 316 stainless steel or marine-grade aluminum to maintain structural rigidity under the weight of a fully clothed adult. Space egress ladders no more than 100 feet apart along the main headwalks.
Handrails must meet strict load-bearing requirements. They provide stability for users navigating moving platforms. Transition plates bridge the gap between fixed shore structures, gangways, and the floating platform. Ensure these transitions are smooth and trip-hazard-free. Proper slopes and non-skid surfaces maintain ADA accessibility across all tide levels. Install heavy-duty UHMW polyethylene wear pads under the transition plates to prevent them from gouging the deck surface as the dock moves.
Proper lighting extends the usable hours of a marina and drastically reduces nighttime accidents. You must balance installation complexity with reliable lumen output. Poorly lit docks invite liability claims, while over-lit docks cause light pollution and annoy liveaboard tenants.
Solar dock lights offer incredibly low installation costs. They require no trenching or complex wiring. However, their lumen output is generally lower, and battery life degrades over time. Hardwired low-voltage LED systems provide consistent, bright illumination. They are more reliable during long winter nights but require professional electrical installation. Use marine-grade tinned copper wire for all hardwired connections to prevent black wire corrosion.
Flush-mounted deck lights define the dock edges without creating trip hazards. Pedestal illumination casts a soft glow over the walking surface. You must comply with local waterway illumination guidelines. United States Coast Guard (USCG) regulations often dictate specific colors and visibility ranges to prevent your dock from becoming a navigational hazard to passing vessels. Install amber or blue LEDs for edge markers to preserve night vision while clearly delineating the water's edge.
Upgrading dock hardware is not without risk. Poor planning can compromise the stability of the entire structure. You must approach accessory integration as an engineering exercise, not just a purchasing decision.
Retrofitting heavy accessories onto older, low-buoyancy structures is dangerous. Adding concrete anchors or massive service pedestals can submerge the deck. Mitigation requires a comprehensive buoyancy and freeboard audit prior to hardware installation. Calculate the exact weight of all new accessories and ensure the existing floats can support the load. Add supplemental flotation billets under heavy utility nodes if necessary.
Mixing dissimilar metals in a saltwater environment triggers galvanic corrosion. Attaching stainless steel cleats directly to an aluminum frame will cause the aluminum to degrade rapidly. Mitigation involves utilizing nylon isolation pads between the metals. Apply dielectric grease or Tef-Gel to all threaded fasteners. Install sacrificial zinc or aluminum anodes to protect the primary structural metals. Inspect these anodes bi-annually and replace them when they are 50% depleted.
Even the best hardware requires routine inspection. Establish strict protocols for checking moving parts. Inspect pile guide rollers for flat spots. Check hinges and modular connectors for loose pins. Monitor UV-exposed plastics for chalking or cracking. Proactive maintenance prevents minor wear from escalating into major structural failures. Keep a detailed log of all hardware inspections to demonstrate a standard of care in the event of an insurance claim.
Conduct a comprehensive structural and buoyancy audit of your current dock system to determine load capacities.
Define the maximum vessel load requirements and local environmental stressors before purchasing hardware.
Consult with a qualified marine engineer to finalize your accessory procurement list and verify code compliance.
Establish a routine inspection schedule for all newly installed hardware to monitor for galvanic corrosion and mechanical wear.
A: High-friction, UV-stabilized composite materials are generally considered the best option. They resist rot, do not splinter like treated timber, and stay cooler than bare aluminum. Composites also offer superior slip resistance, which is critical for marina safety.
A: Look for marine-grade units with a minimum IP66 rating. Ensure they have isolated water and electrical lines. Select amperage outputs (30A, 50A, or 100A) that match the vessels you intend to berth. Modular designs allow for easier future upgrades.
A: Pile guides are structural brackets that attach the dock to vertical pilings. They allow the dock to move up and down with the tide while preventing lateral drift. They are essential for maintaining structural stability in areas with significant water level fluctuations.
A: Cleat spacing depends on the size of the vessels being moored. Generally, cleats should be spaced every 10 to 15 feet along the dock edge. This spacing allows for proper bow, stern, and spring line configurations.
A: Solar lights are excellent for marking edges and providing ambient light. However, they may not meet strict regulatory requirements for primary walkway illumination due to inconsistent output. Hardwired low-voltage LED systems are recommended for primary safety lighting.
A: Never allow dissimilar metals to touch directly. Use nylon isolation pads between stainless steel hardware and aluminum frames. Coat all fasteners with dielectric grease or Tef-Gel. Additionally, install sacrificial anodes to draw corrosive action away from structural components.
